What Is the GEN4™ Standard Ion Air Knife?
The GEN4 Standard Ion Air Knife offers 30% improved performance and is an effective way to eliminate static. Like its “super” counterpart, the GEN4 Super Ion Air Knife, the GEN4 Standard Ion Air Knife removes static electricity from plastics, webs, sheet stock and other surfaces where tearing, jamming or hazardous shocks are a problem.
This ionizer uses our original Standard Air Knife to carry ions from a GEN4 Ionizing Bar to the charged surface – up to 20 feet (6.1m) away. Though not as efficient as our GEN4 Super Ion Air Knife (40:1 air amplification), the GEN4 Standard Ion Air Knife (30:1 air amplification) still provides fast static decay and strong blowoff force for cleaning. Force can be adjusted from a “blast” to a “breeze”. The GEN4 Standard Ion Air Knife is electrically powered, is shockless and has no moving parts.
The Model 8103 3″ (76mm) GEN4 Standard
Ion Air Knife removes dust from computer hard disc prior to assembly.
Why The GEN4™ Standard Ion Air Knife?

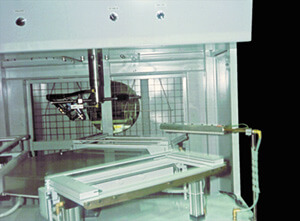

When air consumption and noise level are not critical to the application, the lower cost makes the GEN4 Standard Ion Air Knife a good choice. (To compare the GEN4 Super Ion Air Knife and GEN4 Standard Ion Air Knife, see the performance table on the Super Ion Air Knife page and the performance table for the GEN4 Standard Ion Air Knife, below.) Compressed air inlets are provided on each end of the GEN4 Standard Ion Air Knife. For long spans, multiple GEN4 Standard Ion Air Knives can be mounted end-to-end. This produces an air gap at the connection end of about 2″ (51mm). (If no air gap is desired, use the GEN4 Super Ion Air Knife.) Special length GEN4 Ionizing Bars up to 119″ (3.02m) are available for multiple air knife applications. A Model 8212 12″ (305mm) GEN4 Standard Ion
Air Knife System cleans metal frames prior to powder coating.

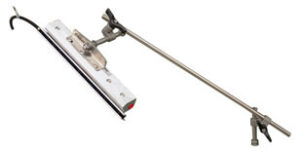

Universal Air Knife Mounting System
The Universal Air Knife Mounting System is used to provide secure, precise positioning for any of the EXAIR Air Knives. It can be mounted on either the top or bottom of most Air Knives (Super Air Knife, Standard Air Knife and Full-Flow Air Knife). The Universal Air Knife Mounting System has a durable, stainless steel construction that is suitable for a variety of industrial applications.
The mounting system can also be used with Exair Static Eliminiators. For the GEN4 Super Ion Air Knife, it can be mounted on the top. Bottom mounting is possible on GEN4 Super Ion Air Knives that are 18″(457mm) or longer. For the GEN4 Standard Ion Air Knife, it can be top mounted on any length. Bottom mounting is possible on GEN4 Standard Ion Air Knives that are 9″(229mm) or longer.
Applications
Web cleaning
Molding machinery
Sheeters and trimmers
Cleaning parts
Pre-paint dust removal
Shrink wrappers
Package cleaning
Bag opening/fill operations
Printing equipment
Advantages
30% improved performance
Rugged metal armored and electromagnetically shielded cable
EXAIR’s EFC is an electronic flow control that dramatically reduces compressed air costs by turning off the compressed air when no part is present. This minimizes compressed air use for blow off, drying, cooling, conveying and static elimination operations. The EFC combines a photoelectric sensor with a timing control that limits compressed air use by turning it off when no part is present.
Power Supply
The GEN 4 power supply model 7960 (with two outlets) or the GEN4 power supply 7961 (with four outlets) and selector switch for 115 V or 230 V is required for operation.
The two exchangeable power cables (each approx. 1.80 m long) are shielded and thus protect sensitive electronics from electromagnetic interference, while at the same time being easy to connect or to install. A built-in primary fuse protects against voltage spikes. The power supply is UL listed according to US and Canadian safety standards and complies with CE and RoHS regulations. Click here for more information.
