Vac-u-Gun™

Vac-u-Gun™ – Vacuum, blow and transfer with no moving parts!
Rugged die cast construction for industrial use.

Description

What Is The Vac-u-Gun?
The Vac-u-Gun is a low cost solution to a wide variety of industrial housekeeping problems. The Vac-u-Gun is a vacuum gun, a blow gun and a transfer tool all-in-one. Lightweight and easy to use, the Vac-u-Gun has durable die cast construction with no moving parts to wear out.

Vg Floor

Why The Vac-u-Gun?
The Vac-u-Gun uses less compressed air than an ordinary blow gun. It injects a small amount of compressed air through directed nozzles to produce a vacuum on one end and a high output flow on the other. The amplified output flow is 12 times the air consumption rate.

The Vac-u-Gun offers a more efficient way to blowoff, cool, dry and clean. In vacuum mode, work surfaces can be easily cleaned by vacuuming the debris away instead of blowing it off the surface only to sweep it up later. In blow mode, the Vac-u-Gun has a large 1-1/4″ (32mm) diameter that allows it to cover more surface area in less time compared to ordinary air guns. Transferring materials over long distance is also possible using the smooth bore vacuum hose. Three Vac-u-Gun Systems with tools are available.

Versatile

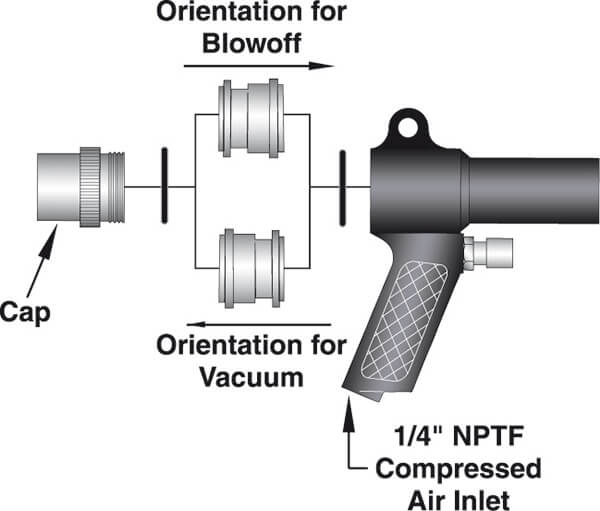

Vacugun Englisch
Reverse the direction of the nozzle insert to change from vacuum to blowoff.
In seconds, the Vac-u-Gun can be transformed from a powerful vacuum gun into an efficient blow gun or into a transfer tool for lightweight materials. Each Vac-u-Gun System comes complete with a set of attachments to suit numerous industrial applications.
Vghand
In blow mode, the Vac-u-Gun consumes less air than ordinary blow guns.

Applications

Vacuum Mode:

  • Vacuum Shavings
  • Vacuum Absorbent
  • Vacuum Sawdust
  • Vacuum Spills

Transfer:

  • Transfer Small parts
  • Transfer Pellets
  • Transfer Trim

Blowing:

  • Blow Chips
  • Blow Water
  • Blow Coolant
  • Blow Scrap

Advantages

  • No moving parts-maintenance free
  • Low cost
  • Durable – die cast construction
  • Eliminates shock hazard – No electricity
  • Meets OSHA pressure requirements
  • Vacuum or blow off
  • Lightweight and portable
  • Quiet
  • Versatile

Specifications

Pressure Supply Air Consumption Vacuum Force
PSIG BAR SCFM SLPM “H2O kPa Ozs Grams INLET
80 5.5 13 368 -29,5 -7 9 255 1/4″ NPT

Air consumption has been minimized by using the appropriate amount of air required for vacuuming chips.

Dimensions

Abmessung Vacugun 1 Eng

Models

BSP Threads available – contact us.

Model Description
6192 Collection System – includes Vac-u-Gun, re-useable bag, brush, crevice tool, skimmer tool and (2) extension wands.
6292 Transfer System – includes Vac-u-Gun, 10′ (3m) vacuum hose, brush, crevice tool, skimmer tool and (2) extension wands.
6392 All Purpose System – includes Vac-u-Gun, re-useable bag, 10′ (3m) vacuum hose, brush, crevice tool, skimmer tool and (2) extension wands.
6092 Vac-u-Gun Only – included with all systems shown above

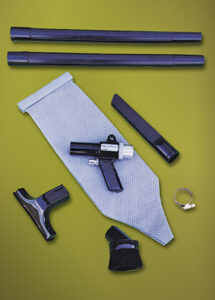

Vac U Gun Collection

Model 6192 Collection System

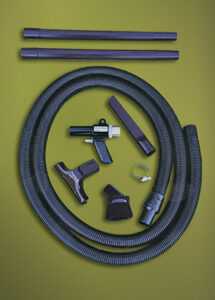

Vac U Gun Transfer

Model 6292 Transfer System

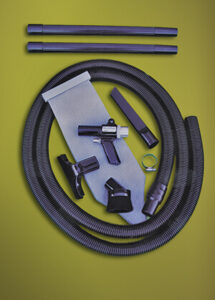

Vac U Gun All Purpose

Model 6392 All Purpose System

Accessories

Model Description
XXXX For Filters and Separators, please contact us.
1903 Trigger replacement part for Vac-u-Gun 6092 access + valve
6565 Crevice/siphon nozzle for Vac-u-Gun and Drum Vac, for tube 6568
6566 Flat wiper nozzle for Vac-u-Gun and Drum Vac, 133mm wide, for tube 6568
6568 Extension tube 19″ to hose 6569 from Drum Vac, Chip Vac, Vac-u-Gun
6583 Suction hose 3m, ID 1.25 inch for Vac-u-Gun
6584 Filter bag for Vac-u-Gun, volume approx 3.5 liters (for materials approx. >50µ),
6585 Round nozzle for Vac-u-Gun
6603 Threaded hose clamp for hose 1 1/2″ und 2″
6608 Hose clamp for hose 3/4″ + 1″ + 1 1/4″ and for replacement filter for Vac-u-Gun
9005 Oil separator – 3/8 NPT, 425-1048 l/min. (15 – 37 SCFM)

Installation and Maintenance Sheets

Vac-u-Gun
