Description
The operating elements on the pipe inspection camera and on the remote control are provided with self-explanatory symbols, which allows for quick familiarization.
Thanks to the on-screen meter counter, you always know exactly how far you have already driven into the pipe, recorded images and videos are immediately saved on the SD card and can be transferred directly to the PC in the office. A software module for 3D pipe runs, section graphics, any required DIN-compliant documentation is not included.
Technical details:

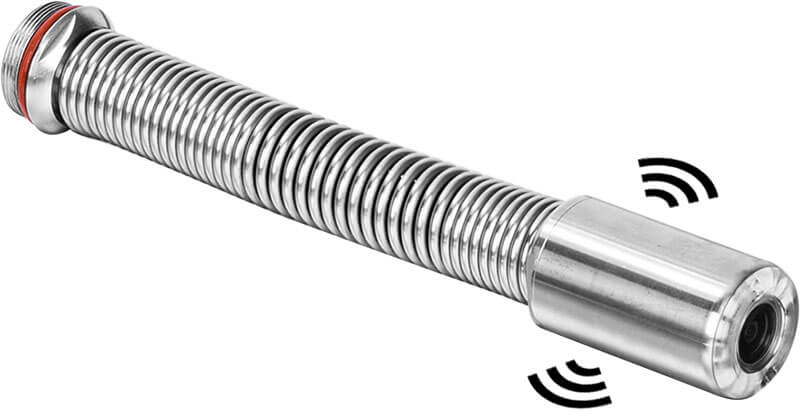

- 1/3 inch CMOS camera, 120° wide view angle
- Stainless steel short camera head, IP68 water proof level
- Sapphire glass lens cover, 12 white LEDs
- Camera diameter: 23mm (0.9“), suitable for pipe diameters 25 – 150mm (1”-5.9”)
- 30m fiberglass rod cable with stainless reel
- One touch record/still images button
- 7″ TFT LCD monitor with DVR
- Rechargeable High capacity Li-battery for 5 hours continuous working
- Compact, Rugged and waterproof design
